The recent exponential rise of incidents related to identity theft, phishing, and online fraud has created increasing demand for improved security and identity verification. Although biometric identification methods (for example, facial recognition and fingerprint sensors) are gaining popularity, two-factor authentication that leverages email and/or text messages is still the most popular approach. The purpose of two-factor authentication is to make an attacker’s life harder and to reduce fraud risks. If you already follow basic password security measures, two-factor authentication will make it more difficult for cybercriminals to breach your account.
The traditional password approach is a one-factor authentication method and focuses on “something you know”, or the password. Two-factor adds a second factor, typically related to “something you have.” In this example, the second factor is a smartphone with messaging capabilities. Generating a unique code and sending it as a text message improves the integrity of the identity verification step because it assumes only the target user has possession of the mobile device.
In the past, two-factor authentication was difficult to implement because it required a deep knowledge of telephony, mobile carriers, and interaction with multiple APIs that used different protocols and credentials. Flowroute is a developer-centric communication solution that provides a suite of services including messaging. Flowroute has developed several SDKs, including Python, .NET, Ruby on Rails, PHP, and of course Node.js, to facilitate the integration of their APIs into your own code base.
Getting started with Flowroute

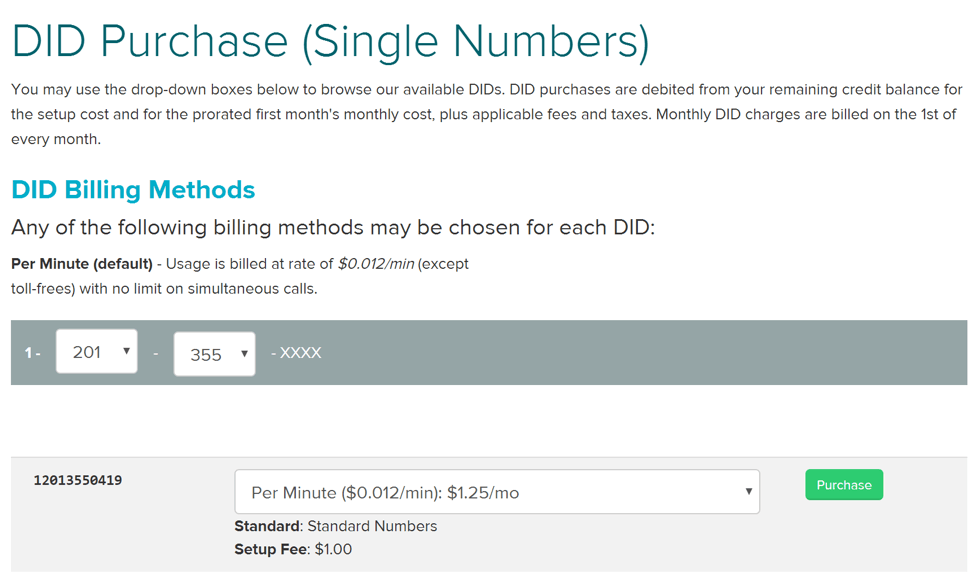

You can get started with Flowroute by signing up at https://flowroute.wpengine.com/. After you have an active account, you must provision a phone number or associate an existing number with your account to use messaging. For security reasons, the Flowroute API will only allow you to send Short Message Service (SMS) messages from a phone number in your account. If you wish to port an existing number, refer to the help center at https://manage.flowroute.com/accounts/help/ and follow the related FAQ. To provision a number through Flowroute, select the DIDs tab from your online dashboard then choose the option to Purchase. You will see a form similar to the one shown in Figure 1.
After you select your area code and exchange, you will be provided with several options to purchase the number. Flowroute will automatically configure your new number to allow SMS messaging.
Working with the API
The developer portal for Flowroute is accessible at https://developer.flowroute.com/. The site allows you to view documentation about the various APIs and download the related SDKs. There is also a convenient way to test the APIs directly from your web browser. Navigate to the Flowroute v2 API then choose the “Send a Message” option on the left. The documentation for the API will appear, including the endpoint, what you should POST to the endpoint, and what the possible return values are.
At the bottom of the page is a “Try It Out” section. First, click the key icon to enter your credentials. You can obtain your credentials from this URL: https://manage.flowroute.com/accounts/preferences/api. After you enter your credentials, input the number for a phone capable of receiving text messages in the “to” field. It should be in an 11-digit E.164 format, like: 16785551212. Next, input the number to send the message from. This should be a number that is part of your Flowroute account, either one that you ported or one that you provisioned. Finally, input a test message and click “Try it!” If everything goes well you should see a “200 OK” message and receive the text message on the phone you send the message to.
Installing the SDK
Flowroute provides a set of SDKs for several languages to make it easy to get up and running with the messaging APIs. Navigate to https://developer.flowroute.com/ to begin the steps to install the Node.js SDK for Flowroute. Choose the Node.js SDK link for messaging on the right. This will take you to the GitHub repository. Note the URL. From a parent directory, follow these steps to get started:
1. Make a directory for your app:
2. Change to that directory:
3. Install the Flowroute SDK:
git clone https://github.com/flowroute/flowroute-messaging-nodejs.git
4. Change the directory to the SDK’s library directory:
5. Install dependencies:
6. Change the working directory back to the root of the project (“two-factor”).
The Two-Form Sample App
Now that the SDK is installed, you are ready to test out the sample app. To demonstrate the API, this app expects you to pass on your Flowroute username and password. It will then generate a random code and text it to a number you enter, then wait for the user to enter the code. When the username, password, and code are entered correctly, it displays a success message.
Initialize your project by typing:

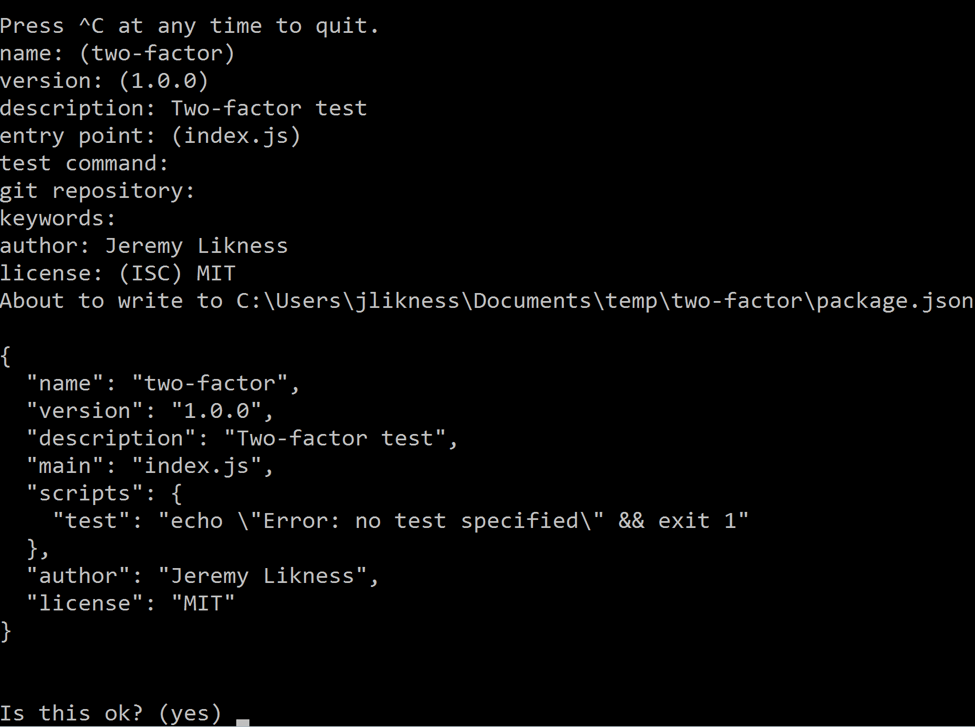

You should see something similar to Figure 2
Accept the package for it to write to disk.
Install a dependency on the prompt library to accept the username, password, and code:
npm install prompt –savedev
Now use your favorite IDE to open the directory and create a file named index.js. Start by importing the dependencies and setting up some variables:
Remember the key and password are available on your API page, and are the same ones you used when testing the API. The “from” number should be a valid number in your account.
The first step is to verify the username and password. The prompt library lets you require the variables and here the values are simply compared to the global variables. In a production application, you would likely hash the password and send it a backend database or authentication service for verification.
Next, obtain a phone number to send the text message to. It must be a valid 11-digit number, so the regular expression checks for exactly 11 digits.
The next method uses the Flowroute API to send a text message with the code. Notice how simple the process is: set up your credentials, pass the message, and handle the response.
Finally, check that the code entered is valid and show a success message if it is.
The last bit of code handles any errors that may be encountered.
The example application is now ready to run. From a Node.js command prompt, type:

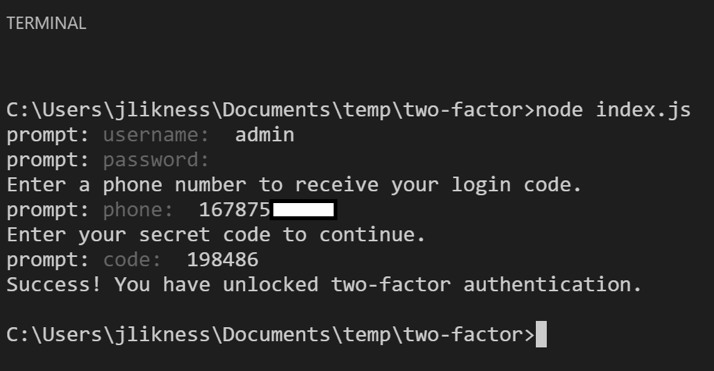

You will be prompted for a username and password, a phone number to send a code to, and the code itself. A successful run is shown in Figure 3.
You may receive an error from the API. The following list contains common errors and how to troubleshoot them:
401 – Unauthorized: this typically means your API credentials are incorrect. Double check that your credentials match and that you don’t have extra spaces.
403 – Forbidden: when you receive this error, it means you either tried to set the “from number” to a number that is not in your account, or did not enter it as a valid 11-digit E.164 formatted number.
500 – Not OK: This usually happens when the “to” number is not a properly formatted 11-digit E.164 number.
Finally, if you are prompted for the code but never receive one on your test phone, check your Flowroute online dashboard and reach out to customer support to confirm your phone number is provisioned for SMS.
The example application demonstrates how easy it is to programmatically send SMS messages to a mobile device. To use this functionality in real-world application, you would want to take a few more steps, including:
– Allow the user to set up their phone number and save it for future use
– Verify the phone number is valid by sending a code. Do not send further messages to the phone until the user successfully enters the code so you are sure they entered the correct phone number. You don’t want to “spam” an unauthorized phone!
– Most two-factor implementations don’t allow codes to work after a period of time. For example, you might set an expiration of 5 minutes for the code and allow the user to generate a new code if they don’t receive their text or update the code in time.
Of course, the Flowroute v2 API allows for more than just sending text messages. It also allows you to programmatically respond to incoming text messages and look up details about messages that have already been sent. When your application requires messaging, choose the Flowroute API because it is quick, easy solution that was designed specifically for developers to seamlessly integrate messaging into their own applications. Learn more about Flowroute’s APIs online at https://developer.flowroute.com/.
